How do I choose between rack types?

Selective teardrop rack is the starting point for mixed SKUs; pushback stores 2–6 deep with LIFO by SKU, pallet flow serves FIFO or dated stock, and drive-in suits bulk storage with few SKUs. Cantilever holds long loads, while carton flow serves case picking.

Can I add on to my existing pallet rack?

Usually, if the connection matches, but "teardrop" is not universal across manufacturers. Send photos of the upright face, beam connector and any label so we can identify matching components before you order.

How wide should my forklift aisles be?

Aisle width is set by the lift truck: counterbalance trucks need approximately 12–13 feet, reach trucks 8–10 feet, and very-narrow-aisle equipment 5–6 feet. We confirm the requirement against your truck and load; aisle width has a major effect on storage density.

Who schedules and manages rack installation?

Yes. We handle design, supply and installation through experienced installation crews we schedule and manage. The system is anchored to the floor, aligned and capacity-tagged to the approved layout.

How much weight can pallet rack hold?

There is no single rack capacity: beam capacity is per pair, per level, while frame capacity depends on height and beam spacing. We size beams and frames from your heaviest pallet, and capacities go on load plaques.

Industrial pallet racks and warehouse racking systems

Pallet Rack Systems for Greater Louisville Warehouses

Name: Louisville Pallet Racks
Address: 6844 Bardstown Rd. Unit #2687, Louisville, KY, 40291, US
Telephone: (502) 521-1485
Price range: $$

We supply and install every major type of warehouse racking: pallet rack for full access to each position, pushback and drive-in rack when you need depth, pallet flow for FIFO rotation, cantilever for long loads, and carton flow for case picking.

Pick the system below that matches how your product moves, or call (502) 521-1485 and we will narrow it down with you in one conversation.

(502) 521-1485

Our Warehouse Racking Products

Six systems cover almost every storage problem we see in Greater Louisville and Southern Indiana. Most buildings end up using two of them together.

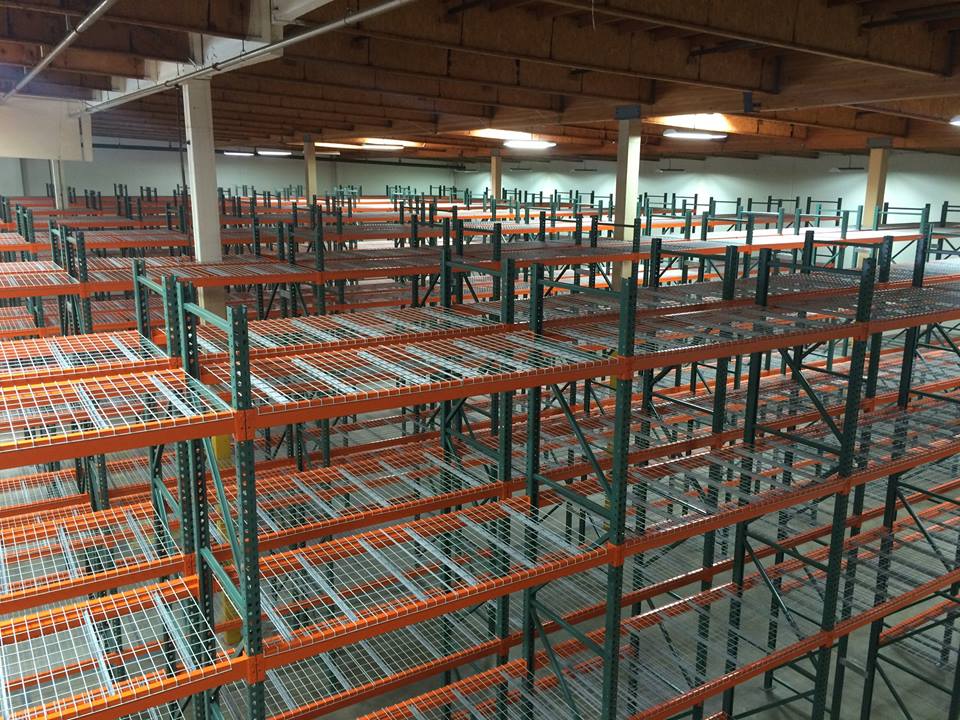

Pallet Rack

Also called selective pallet rack

Every pallet reachable, every time. The baseline we size everything else against.

See details

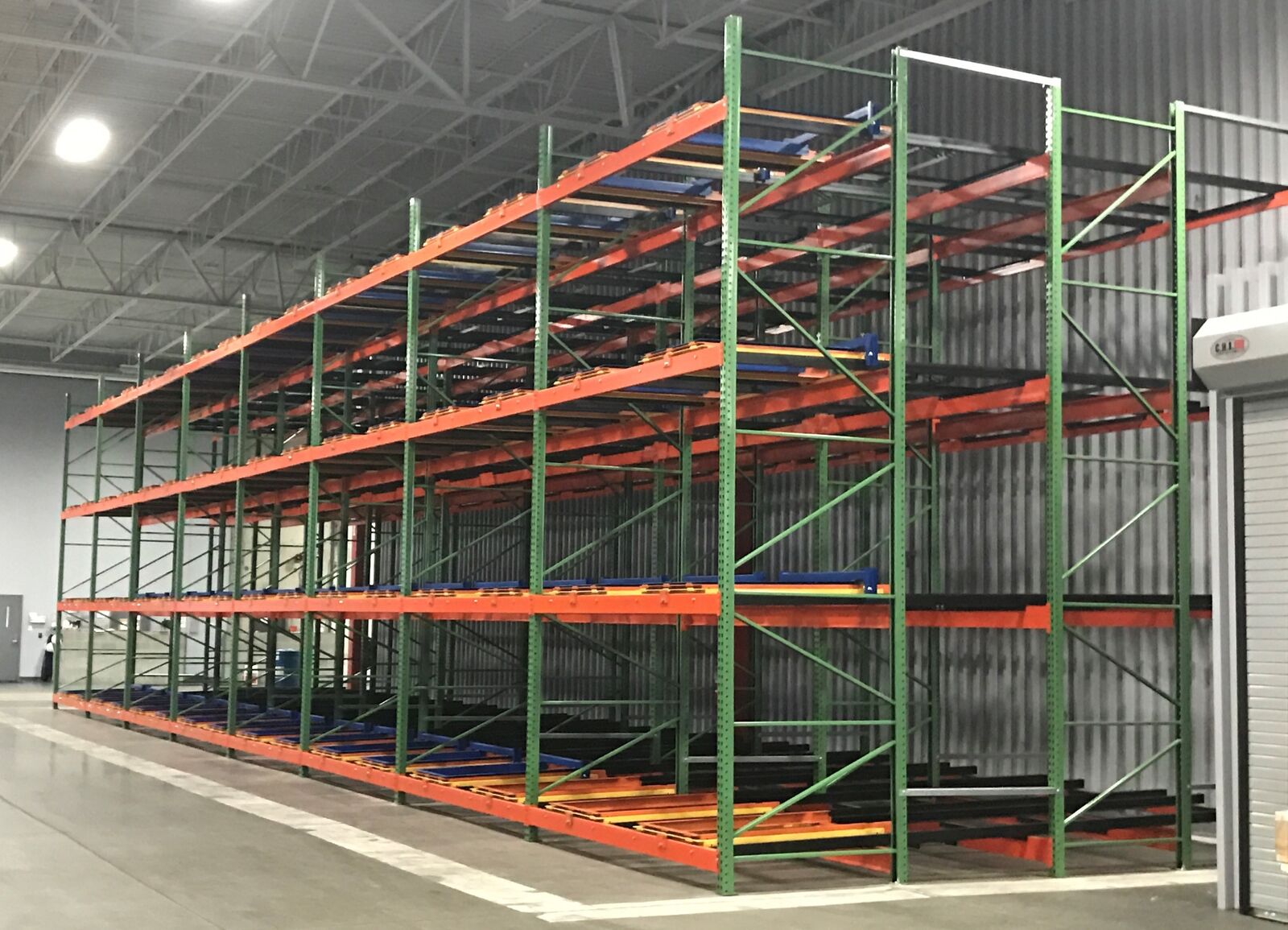

Pushback Rack

Also called push back pallet rack system

Two to six pallets deep from one aisle, without giving up much reach.

See details

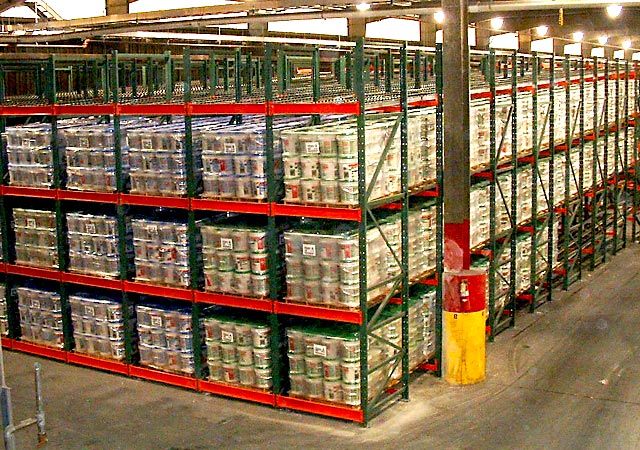

Pallet Flow Rack

Also called flow through racking

Load one side, pick the other, and let gravity enforce first in, first out.

See details

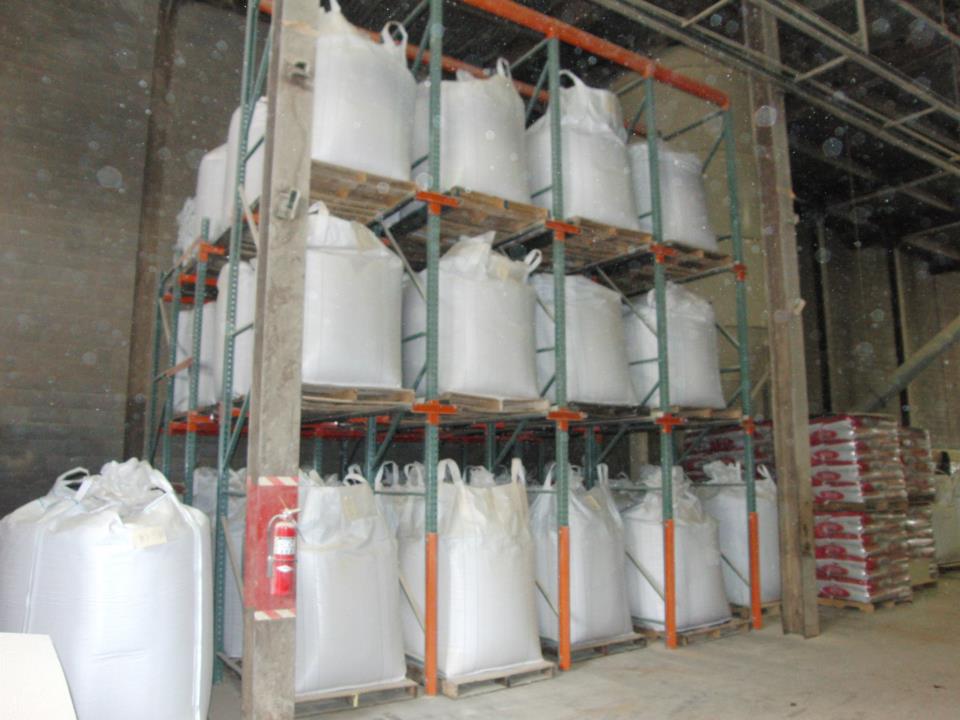

Drive-In Rack

Also called drive through pallet racking

No aisles. The forklift enters the structure, and the floor holds more pallets per square foot than any other system.

See details

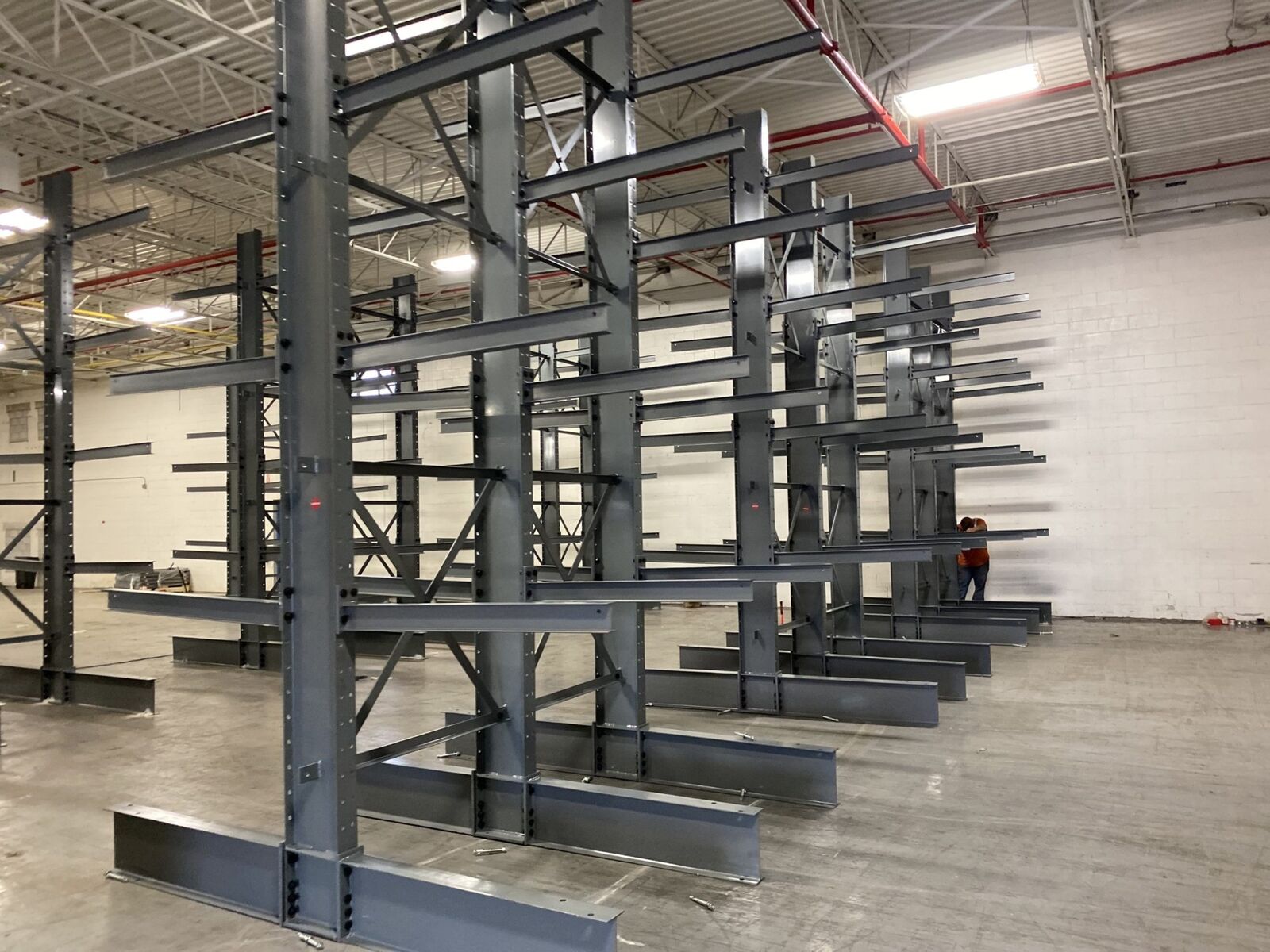

Cantilever Rack

Also called cantilever warehouse racking

Arms with nothing in front of them, built for lumber, pipe, and anything a pallet can't hold.

See details

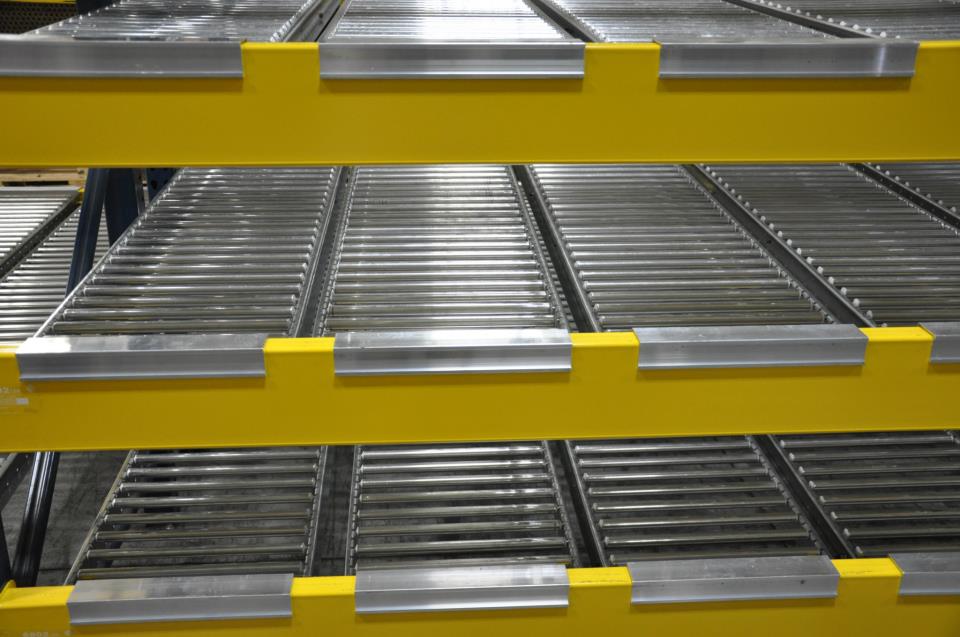

Carton Flow Rack

Also called carton flow shelving

Cases advance to the picker instead of the picker hunting for cases.

See details

Choosing Between Rack Types

Four things decide the answer: how many SKUs you carry, how many pallets you hold of each one, how fast product turns, and how much height the building gives you.

Many SKUs with a pallet or two each point to selective pallet rack. Several pallets of the same item favor pushback. Date-driven rotation calls for pallet flow. Large volumes of a few items in a tight footprint suit drive-in. Long material needs cantilever, and case picking needs carton flow.

Free warehouse consultation

CAD layout with pallet position counts

Installation by experienced crews we schedule and manage

One local contact from layout to punch list
